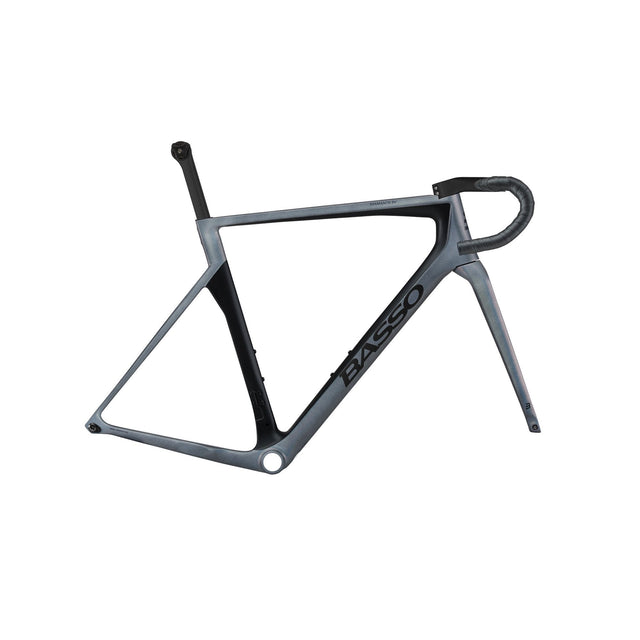

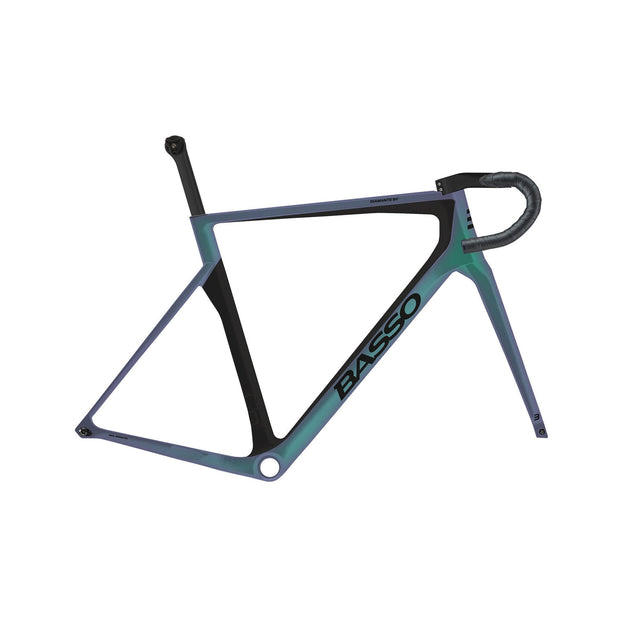

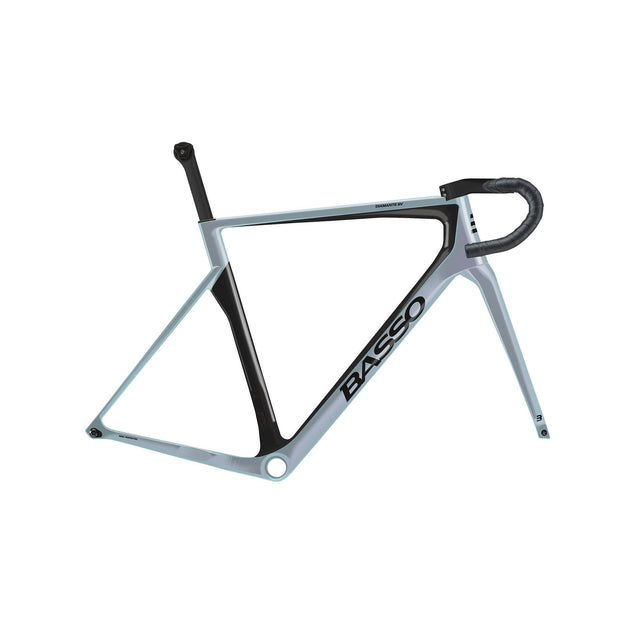

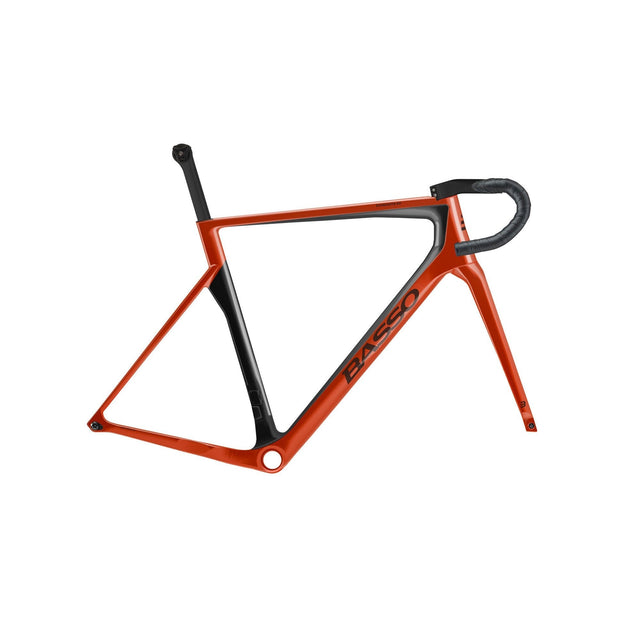

Basso Diamante SV Disc Frameset
Regular price
$41,24700
Unit price
-
RA price match promise
-
,and
Basso | SKU: 211SVT-98-45 | Option:
Pickup available at RA Cycles - Brooklyn
Usually ready in 24 hours
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Basso Diamante SV Disc Frameset
Regular price
$41,24700
Unit price
* Product image may vary. Refer to the description for accurate details.
Basso Diamante SV Disc Frameset Info
Elevate your cycling experience with the Basso Diamante SV Disc Frameset. Meticulously crafted with premium carbon materials for exceptional performance and responsiveness. This Italian masterpiece combines aerodynamic efficiency with race-ready handling, making it perfect for competitive cyclists seeking the ultimate road machine. Discover unmatched quality today.Basso Diamante SV Disc Frameset - Specifications
Frame Material:
Carbon
Fork:
Carbon
Headset:
Integrated
Seatpost:
Diamante SV / 15mm Offset
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
BB86 Required
Stem:
Basso Levita Integrated
Handlebar:
Basso Levita Integrated
*Specifications are subject to change.
Basso Diamante SV Disc Frameset Geometry
Size:
45
48
51
53
56
58
61
63
B. Seat Tube (c-t)
450
480
510
530
560
580
610
630
C. Top Tube Length
505
515
525
545
560
575
590
605
D. Head Tube Length
101
101
126
138
156
180
203
226
E. Chain Stay Length
404
404
404
404
406
410
410
410
G. Seat Tube Angle
76
75
75
74
73.5
73
72.5
72.5
H. Head Tube Angle
71.8
71.8
72
72.3
73.5
73.5
74
74.5
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
523
523
548
560
587
610
634
658
L. Reach
375
375
378
384
386
389
390
398
